1 Automaton and Language#
1.1#
computation model, finite automation, FDA
transition function $\delta:Q\times \Sigma\rightarrow Q$, accept state, languge $L(M)=A$
regular language, regular operation: union $\cup$, concatenation $\circ$, star $^*$
nondeterministic $\epsilon$ NFA $\delta:Q\times \Sigma_\epsilon \rightarrow \mathcal{P}(Q)$
$NFA=DFA$
$REG$ is closure under regular operation
regular expression $REX$: $R = a\in \Sigma \text{ or } \epsilon \text{ or } \varnothing \text{ or } R_1\cup R_2 \text{ or } R_1\circ R_2 \text{ or } R_1^*$
token, lexical analyzer
GNFA (like contraction) $\delta:(Q-\{q_{acc}\})\times (Q-\{q_{acc}\}) \rightarrow \mathcal{R}$
equivalence: a language is regular iff it can be expressed by regex. proof: construction in closure; GNFA
irregular lang. example: $A=\{0^n1^n|n\geq 0\}$
Pumping Lem.: $\text{lang.} A \in REG,\ \exist\ p,\ \forall \text{ string }s\text{ with a length of no less than }p, s=xyz \text{ and:}\\ 1.\forall i\geq 0,\ xy^iz\in A\quad 2.|y|>0\quad 3.|xy|\leq p$
1.2#
parser, context-free grammar, context-free language CFL
parse tree, leftmost derivation
ambiguous, inherently ambig. e.g. $a^nb^nc^nd^n \in L=\{a^nb^nc^md^m|n,m\ge1\}\cup \{a^nb^mc^md^n|n,m\ge1\}$
Chomsky normal form: $A\rightarrow BC$ or $A\rightarrow a$ (or $S\rightarrow \epsilon$)
pushdown automaton PDA, stack, $\delta:Q\times \Sigma_\epsilon\times \Gamma_\epsilon \rightarrow \mathcal{P}(Q\times \Gamma_\epsilon)$
equivalence: a language is context-free iff it can be recognized by a PDA.
proof: sign symbol $\$$, nondeter. substitution and comparison; $A_{pq}$ for string that brings PDA from state $p$ and empty stack to $q$ and empty stack $\rightarrow A_{pr}A_{rq}$ or $\rightarrow a A_{rs} b$
$REG \subset CFL$
CFL’s Pumping Lem.: $\dots s=uvxyz \text{ and:}\\ 1.\forall i\geq 0,\ uv^ixy^iz\in A\quad 2.|vy|>0\quad 3.|vxy|\leq p$
more: DPDA, DCFL; leftmost reduction, valid string, handle, forced handle, DCFG
more: dotted rule; DK-test; almost(end sign lang.) equivalence of DCFG and DPDA; LR(k) grammar
2 Computability#
2.1#
Turing machine, configuration $L(M)$
Turing-recognizable, decidable
variants and robustness: multitape TM, nondeterministic TM, enumerator
recursive enumerable
algorithm, Hilbert’s problem, Church-Turing Thesis
description of TM
2.2#
decidable problem(language): $A,\ E,\ EQ$ for $DFA(REX),\ CFG$ except $EQ_{CFG}$
$REG \subset CFL \subset DECI \subset RE$
universal TM, $A_{TM}$ is undecidable. proof: contradiction, Cantor diagonal method
The set of all TM $\{\langle M\rangle \}$ is countable but the set of all lang. $\mathcal{L}$ is uncountable, thus $\exist\ lang. A \notin RE$.
$A,\ \overline{A} \in RE \Rightarrow A \in DECI$ $\overline{A_{TM}} \notin RE$
2.3#
reduction(
undeci.: $HALT_{TM},\ E_{TM},\ REG_{TM},\ EQ_{TM}$ proof: reduct to $A_{TM}$ etc.
Rice Thm.: $P \text{ is a non-trivial property},\ L_p = \{\langle M\rangle | L(M) \in P\} \text{ is undeci.}$ (not all TM descriptions belong to set $P$ and $L(M_1)=L(M_2),\ \langle M_2\rangle \in P \text{ iff } \langle M_1\rangle \in P$.)
computation history
LBA $A_{LBA}$ is deci. but $E_{LBA}$ is undeci.
more: $ALL_{CFG},\ PCP$
computable function, mapping(many-one) reducibility: $\exist\text{ computable func. } f:\Sigma^*\rightarrow\Sigma^*,\ \forall \omega,\ \omega\in A \Leftrightarrow f(\omega)\in B$ $A\leq_m B$
If $A$ is undeci./unre. then $B$ is undeci./unre.; if $B$ is deci./re. then $A$ is deci./re.
$A\leq_m B \Leftrightarrow \overline{A} \leq_m \overline{B}$
example: $A_{TM} \leq_m \overline{EQ_{TM}}$
2.4#
$SELF$ machine that obtains its own description
Recursion Thm.: $T \text{ is a TM of func. } t: \Sigma^* \times \Sigma^* \rightarrow \Sigma^*,\ \exist\text{ TM }R\text{ of func. } r:\Sigma^* \rightarrow \Sigma^*,\ \forall \omega ,\ r(\omega) = t(\langle R\rangle, \omega)$
minimal description of TM $MIN_{TM}$
fixed point $\exist F,\ f(\langle F\rangle) = F$
mathematical logic: model, formula $\supset$ sentence $\supset$ theory
$Th(\mathbb{N},+)$ is deci. proof: NDA recursion $Th(\mathbb{N},+,\times)$ is undeci.
oracle TM
$T^{A_{TM}}$ is much stronger but there still be some lang. it can not deci.
A decidable relative to B, Turing reducible $A\leq_T B$
example: $E_{TM} \leq_T A_{TM}$
2.5#
minimal description of string $d(x)$, descriptive(Kolmogorov) complexity $K(x) =\min |\langle M,\omega \rangle|$ where $x$ is on the tape when $M$ halts on the input $\omega$ (or $K(x)=\min\limits_{p:\mathcal{U}(p)=x}l(p)$)
$K(x)$ is uncomputable.
Godel incompleteness thm., Berry paradox
$K(xy) \leq K(x)+K(y)+O(\log K(x))$ but can not reach $K(x)+K(y)+O(1)$.
$\forall \text{ desc. lang. } A ,\ \exist c_A,\ \forall x,\ K(x)\leq K_A(x)+c_A$
$|\{x\in \{0,1\}^*:K(x)<k\}|<2^k$ for integer $n$, $K(n)\le \log^*n+c$
$\forall \mathcal{U},\ \sum\limits_{p:\mathcal{U}(p)\text{halts}} 2^{-l(p)}\le 1$ (by Kraft ineq.) $sto. \{X^n\} \overset{iid.}{\sim} f(x),\ \frac{1}{n} EK(X^n|n)\rightarrow H(X)$ (by source coding thm.)
more: c-compressible
There always exists incompressible string of any length.($\lim\limits_{n\rightarrow \infty}\frac{K(x^n|n)}{n}=1$) There exists a constant $b$ for $\forall x, d(x)$ is incompressible by $b$.
universal/Solomonoff prob. $P_{\mathcal{U}}(x)=\sum\limits_{p:\mathcal{U}(p)=x} 2^{-l(p)}$ $\forall \text{ computer } A ,\ \exist c_A,\ \forall x,\ P_{\mathcal{U}}(x)\ge c_A P_{A}(x)$
equivalence: $\exist c,\ \forall x,\ |\log\frac{1}{P_{\mathcal{U}}(x)}-K(x)|\le c$
Chaitin $\Omega=\sum\limits_{p:\mathcal{U}(p)\text{halts}} 2^{-l(p)}$
more: Kolmogorov structure function, Kol. minimal sufficient statistics
3 Complexity#
3.1#
big O notation, small O notation
Unlike compuability, complexity depends on the computing model.
time complexity $TIME(f(n))$
note: $TIME(O(n\log n)) \subset REG$
$P=\bigcup\limits_k TIME(n^k)$
PATH, REL_PRIME, CFL
verifier, certificate
$NP=\bigcup\limits_k NTIME(n^k)=P_VERI \subset EXPTIME$
HAM_PATH, COMPOSITES, CLIQUE
$P\overset{?}{=}NP$, NP-complete, SAT
polynomial time computable function, polynomial time reduction $A\leq_PB$
more: cnf formula, 3SAT(is NPc)
Cook-Levin Thm.: SAT is NPc. proof: tableau, window $\phi_{cell}\wedge\phi_{start}\wedge\phi_{move}\wedge\phi_{accept}$
3.2#
space complexity $SPACE(f(n))$
$SPACE(f(n))\subset TIME(2^{O(f(n))})\subset SPACE(2^{O(f(n))})$
Savitch Thm.: $\forall f: \mathbb{N}\rightarrow\mathbb{R}^+,\ \text{where}\ f(n)\geq n(\text{acc.}\ \log n),\ NSPACE(f(n))\subseteq SPACE(f^2(n))$
$PSPACE=NPSPACE \supseteq NP$
PSPACE-complete, PSAPCE-hard
TQBF, FORMULA_GAME
bitape TM, $L=SPACE(\log n)\overset{?}{=}NL$
log space transducer, log space reduction $A\leq_LB$
PATH is NLc, $NL=coNL\subseteq P$
3.3#
space constructible($f(n)\geq O(\log n)$), time constructible($f(n)\geq O(n\log n)$)
Hierarchy Thm.: $\forall\ \text{constructible}\ f: \mathbb{N}\rightarrow\mathbb{N},\ \exist\ \text{lang.}\ A,\ \text{decidable in space } O(f(n))\text{ but not } o(f(n));\ \text{in time } O(f(n))\text{ but not } o(f(n)/\log n)$
$NL \subsetneq PSPACE$, $PSAPCE \subsetneq EXPSPACE$, $P\subsetneq EXPTIME$
more: EXPSPACE-complete; circuit complexity
advanced topics: approx. algorithm, probabilistic TM (BPP), prime, alternating TM, IP=PSPACE, parallel RAM (NC), cryptography(private-key cryptosystem, pulic-key cryptosystem RSA)

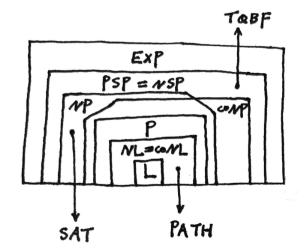

family picture:
